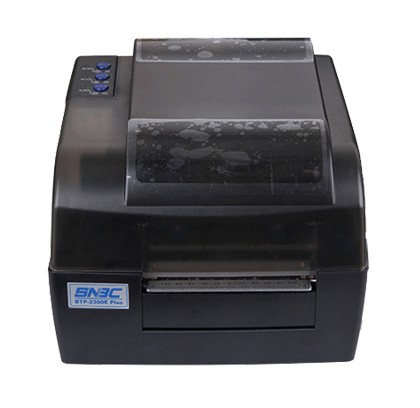

SNBCBTP-2300E ISBN printer
產品詳情打印參數 ? 打印方式： 熱敏/熱轉印 ? 分辨率：12點/毫米（300 DPI） ? 打印寬度： 108 mm(Max.) ? 打印速度： 76mm/s(300DPI) ? 存儲器： SRAM：2MB 主板FLASH：1MB 擴展存儲卡FLASH： 8MB&nbs
- Model：
產品詳情
Print parameters
? Printing method: Thermal / thermal transfer
? Resolution: 12 dots / mm (300 DPI)
? Print width: 108 mm (Max.)
? Print speed: 76mm/s (300DPI)
? Memory: SRAM: 2MB Motherboard FLASH: 1MB Extended Memory Card FLASH: 8MB

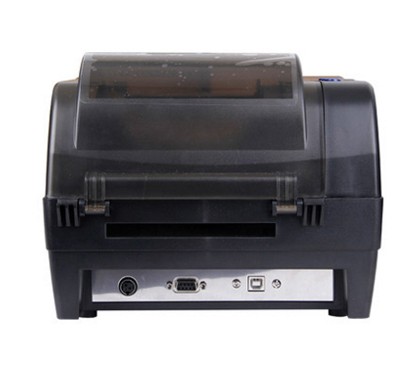

? Communication interface: Standard configuration RS-232 serial Centronics parallel port, USB and Ethernet Ethernet port can choose one
Detection
? Print head temperature detection: thermistor
? Print head position detection: Micro switch
? Paper Mark Detection: Photoelectric Sensor
? Ribbon presence detection: Photoelectric sensors
? Paper presence detection: Photoelectric sensor (optional)
Barcode type
? 1D code: 39 yards, UPCA, UPCE, matrix 25 yards, industrial 25 yards, cross 25 yards, postal code 25 yards (China), 128 yards, EAN13, EAN8, HBIC (39 yards), Kudba code, storage Code, UPC2, UPC5, 93 code, UCC/EAN code, etc.
? QR code: PDF417, MAXICODE code, etc.
character set
? Common single-byte fonts: FONT0 to FONT8, 6 ASD Smooth fonts; 8 Courier fonts
Character processing
? Character enlargement: 1-8 times magnification in both horizontal and vertical directions
? Character rotation: Rotate printing (0 degrees, 90 degrees, 180 degrees, 270 degrees)
Graphics processing
Image files such as PCX, BMP, IMG and HEX can be downloaded to FLASH, SRAM
Paper
? Paper type: continuous paper, label paper, marking paper, perforated paper, folded paper
? Paper width: 118 mm (Max.)
? Paper thickness: 0.06-0.20mm
? Paper roll outer diameter: 127mm (Max.)
? Paper roll mandrel inner diameter: 24/48mm
? Ribbon outer diameter: 65mm (Max.)
? Ribbon length: 300m
? Paper separation method: tear off, peel off, rewind
power supply
? Input: DC 24V, 2.3A (average)
? Average current consumption: 2.496 A (300 DPI) (12.5% duty cycle)
surroundings
? Operating temperature: +5 to 45 degrees
? Operating humidity: 20-80% RH (no condensation)
? Storage temperature: -40 to 55 degrees
? Storage humidity: ≤93%RH (40 degrees)
Physical characteristics
? Dimensions (W × D × H): 251 × 315 × 192 (mm)
? Weight: BTP-2100E approx. 3.5kg
Option
? FLASH: 1MB/4MB / 8MB
Safety certification
? 3C
Product Advisory Hotline: +86-0755-23281611
