得利捷Datalogic-GFS44UE (OEM固定式二維影像條碼掃描模塊)產品詳情:在掃描目標上顯示中心十 字的高可見度4點瞄準器全向讀取高移動耐受光學性能影像采集與文件掃描功能可讀取4mils高密度條碼可讀取一維碼、二維碼和郵 政碼，以及堆疊碼、復合碼可選接口：RS-232串口或 USB接口Datalogic的綠點專利技術 可提供有效讀取反饋集成了“成功讀取”提示功 能蜂鳴器可選

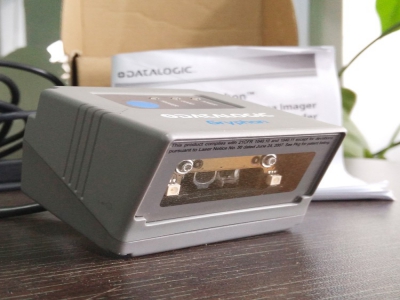

Delegat Datalogic-GFS44UE (OEM fixed 2D image barcode scanning module)
Product Details:
Display a high-visibility 4-point sight with a center of ten on the scan target
Omnidirectional reading
High mobility withstand optical performance
Image capture and file scanning
Read 4mils high density barcode
Can read 1D code, 2D code and postal code, as well as stacking code and composite code
Optional interface: RS-232 serial port or USB interface
Datalogic's Greenpoint patented technology provides effective read feedback
Integrated "successfully read" prompt function buzzer
Optional auto or manual trigger
High impact resin housing construction, solvent resistant
Waterproof and dustproof seal rating: IP54
Decoding ability
One-dimensional code/linear code Automatically distinguish and decode all standard one-dimensional codes including GS1 DataBar linear codes.
Aztec Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Chinese Hanxin Code
Stack code EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1
DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Postal Code IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC); China Post Code; Japan Post Code; Australian Post Code; British Post Code;
Electric appliance
Current Operating status (nominal): < 180 mA @ 5 VDC Standby/Idle (nominal): Online and Serial Online Mode: 65 mA Auto Target Sensing Mode: 115 mA
Input voltage 5 VDC +/- 5%
surroundings
Anti-drop can withstand multiple impacts from the 0.76 m / 2.50 ft drop of cement.
Temperature Storage / Transportation: -20 to 70 °C / -4 to 158 °F Operating conditions: -20 to 50 °C / -4 to 122 °F
Humidity (non-condensing) 5-95%
Ambient light 0 to 100.000 Lux
Waterproof and dustproof seal IP54
Interface
Interface OEM (IBM) USB; RS-232; USB: USB COM; USB HID keyboard
Physical parameter
Optional color to meet certain minimum purchase requirements, you can choose other users to specify the color and logo; gray
Dimensions 3.9 x 5.7 x 5.8 cm / 1.5 x 2.2 x 2.3 in weight RS-232: 204.0 g / 7.2 oz (including cable) USB: 170.0 g / 6.3 oz (including cable)
Reading performance
Light source Aiming: 650 nm VLD
Resolution (maximum) 1D Linear: 0.102 mm / 4 mils Data Matrix: 0.178 mm / 7 mils PDF417: 0.102 mm / 4 mils
Image sensor Wide VGA: 752 x 480 pixels
Image capture image format; BMP, JPEG, TIFF; Greyscale:
256, 16, 2 print contrast (minimum) 25%
Read instructions Datalogic Green Spot Green Point successfully read feedback; Buzzer (tone adjustable); Read LED
Reading angle Curl: +/- 180°; Slope: +/- 40°; 歪 curvature (deviation): +/- 40°
Scanning range
Standard Depth of Field The minimum depth of field is determined by the length of the bar code and the angle of the scan. Depending on print resolution, contrast and ambient light. Code 39: 5 mils: 4.7 to 17.7 cm /
1.8 to 7.0 in
Code 39: 10 mils: 1.7 to 33.2 cm /
0.7 to 13.1 in
Data Matrix: 10 mils: 2.7 to 17.1 cm /
1.0 to 6.7 in
Data Matrix: 15 mils: 1.2 to 24.6 cm /
0.5 to 9.7 in
EAN: 13 mils: 2.5 to 41.9 cm /
1.0 to 16.5 in
PDF417: 10 mils: 2.2 to 23.9 cm /
0.9 to 9.4 in
QR Code: 10 mils: 3.5 to 16.0 cm /
1.4 to 6.3 in
