QX-870 激光掃描器配有最新的條形碼讀取技術，并可連接至易于使用的條形碼追蹤、跟蹤和 控制應用程序解決方案。其特點是易于安裝和部署的可編程掃描光柵，可以讀取各種位置上的多種條碼，即使條碼已受損或未對齊。憑借即插即用設置及最具效率的編碼算法，QX-870 成為所有工業應用的理想激光掃描器。 快速連接系統:M12 Ultra-Lock? 連接器和線纜套件即插即用設置一臺或多臺掃描器解決方

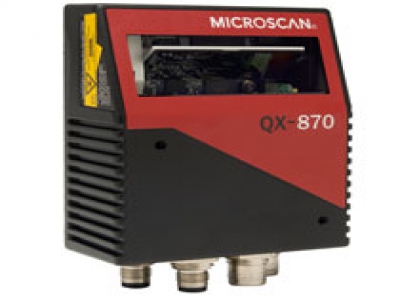

The QX-870 laser scanner is equipped with the latest barcode reading technology and can be connected to an easy-to-use barcode tracking, tracking and control application solution. It features a programmable scanning raster that is easy to install and deploy, and can read multiple bar codes at various locations, even if the bar code is damaged or misaligned.
With plug-and-play setup and the most efficient encoding algorithms, the QX-870 is the ideal laser scanner for all industrial applications.
Quick connection system:
M12 Ultra-LockTM connector and cable kit
Plug and Play settings
One or more scanner solutions
X-Mode technology:
Decoding damaged, poorly printed or unaligned codes
Ensure high read rates and scans
high performance:
Efficient decoding capability for reliable reading of up to 30" (762 cm) barcodes with beam widths up to 10" (25.4 cm).
Smart Raster:
In addition to controlling the scanning angle and speed, the programmable grating with intelligent automatic adjustment technology is also a feature of the QX-870. Advanced software automatically adjusts the laser's raster height and width to match the bar code to selectively target the bar code during a read cycle.
Ethernet protocol:
The QX-870 includes optional embedded Ethernet TCP/IP and EtherNet/IP protocols for high-speed communication.
QX-870 Industrial Laser Scanners
Part Number Description
FIS-0870-0004G QX-870, Industrial Barcode Reader, Low Density, Sweeping Raster, Serial
FIS-0870-0005G QX-870, Industrial Barcode Reader, Medium Density, Sweeping Raster, Serial
FIS-0870-0006G QX-870, Industrial Barcode Reader, High Density, Sweeping Raster, Serial
FIS-0870-1004G QX-870, Industrial Barcode Reader, Low Density, Sweeping Raster, Serial+Ethernet
FIS-0870-1005G QX-870, Industrial Barcode Reader, Medium Density, Sweeping Raster, Serial+Ethernet
FIS-0870-1006G QX-870, Industrial Barcode Reader, High Density, Sweeping Raster, Serial+Ethernet
——————————————————
